FactSage Modules
The module



Solution Module的更多信息请点击Download Solution Slide Show 下载(42页的pdf格式介绍)。

Solution 模块用于输入、编辑、列出以及保存用户个人溶液数据库中的非理想性质。

例如,图2演示了列出的SGTE合金溶液数据库的部分物相,包括通用液相的一般信息以及参数。

图3演示了MoNi的Delta 相中所包含的组元以及一系列的函数以及GCRFCC函数的内容。

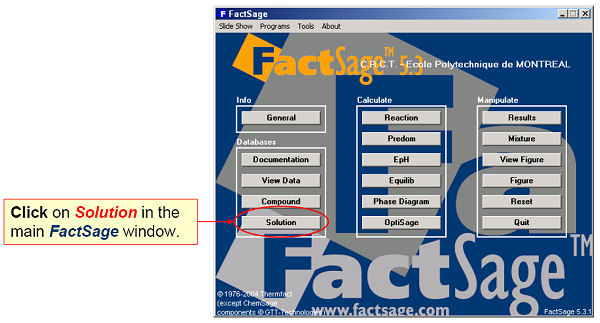

Fig. 1 - Solution Module

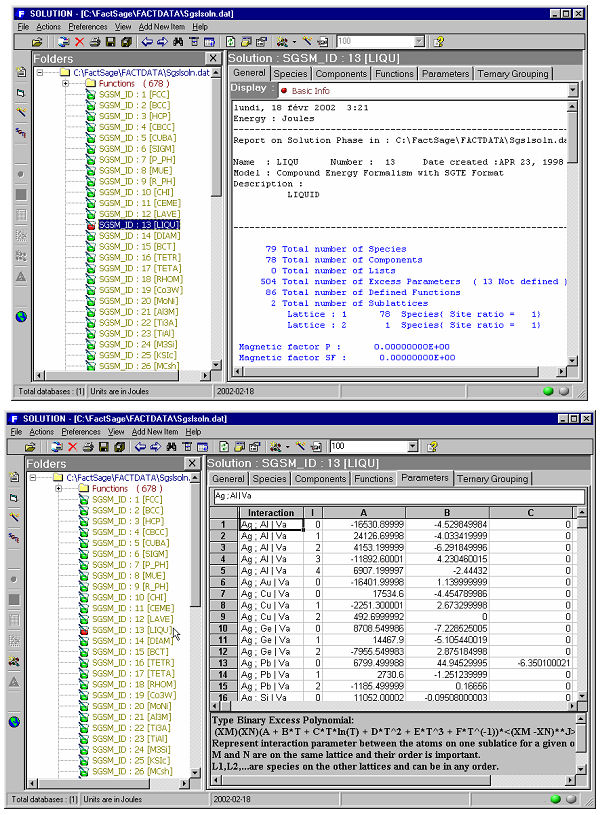

Fig. 2 - Solution Module - SGTE alloy database. Top: listing the solution phases. Bottom: displaying the parameters of the liquid phase.

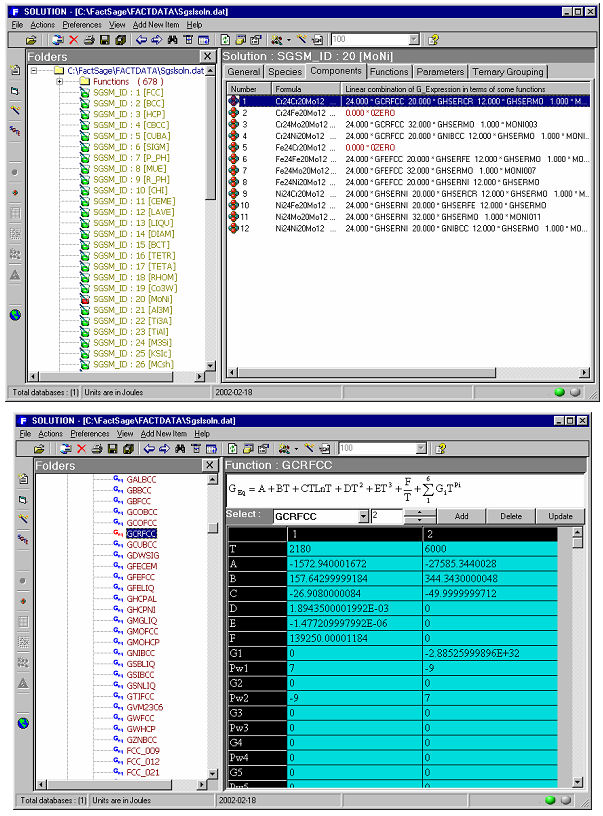

Fig. 3 - Solution Module - SGTE alloy database. Top: displaying the components of the MoNi_Delta phase. Bottom: displaying the contents of the GCRFCC function.
